Product Overview

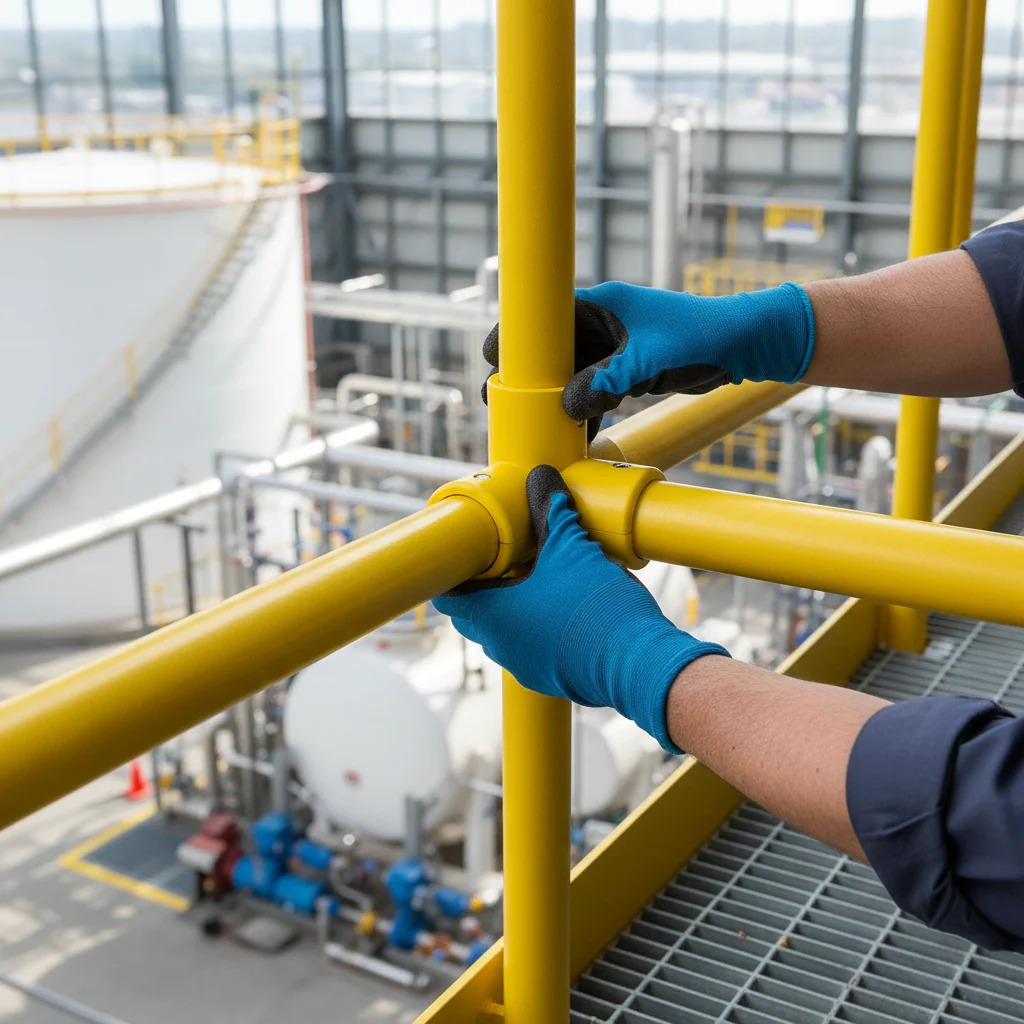

This Premium Heavy Duty Handrail Fitting is designed to create a secure 90-degree joint between handrails and stanchion posts. It is ideal for installations requiring a continuous length from the base to the handrail. The knee rail tubes can be cut to the necessary length to fit between adjacent stanchion posts.

Features

• Constructed for durability and strength
• Pre-drilled for convenience, allowing for easy installation
• Complete with relative nuts and bolts for immediate use
• Compatible with both upper and lower parts of a 3-way corner fitting

Technical Specifications

• Material: Heavy Duty GRP
• Joint configuration: 4-way 90-degree joint
• Included hardware: M6 bolts and nuts
• Weight: 0.65 kg
• Length: 166.0mm
• Width: 116.0mm
• Depth: 116.0mm
• Material: GRP
• Suit tube: 50mm

Usage Instructions

Ensure that the stanchion post is installed as a continuous length from the base to the handrail. Cut knee rail tubes to the appropriate lengths to fit between adjacent stanchion posts. Use the pre-drilled holes to secure the fitting with the provided M6 bolts.

FAQ

• What is the purpose of this handrail fitting?
  This fitting allows for a secure 90-degree connection between handrails and stanchion posts.
• Is this fitting easy to install?
  Yes, it comes pre-drilled and includes all necessary hardware for quick installation.
• Can this fitting be used for both upper and lower connections?
  Yes, it can be used for both the upper and lower parts of a 3-way corner fitting.
