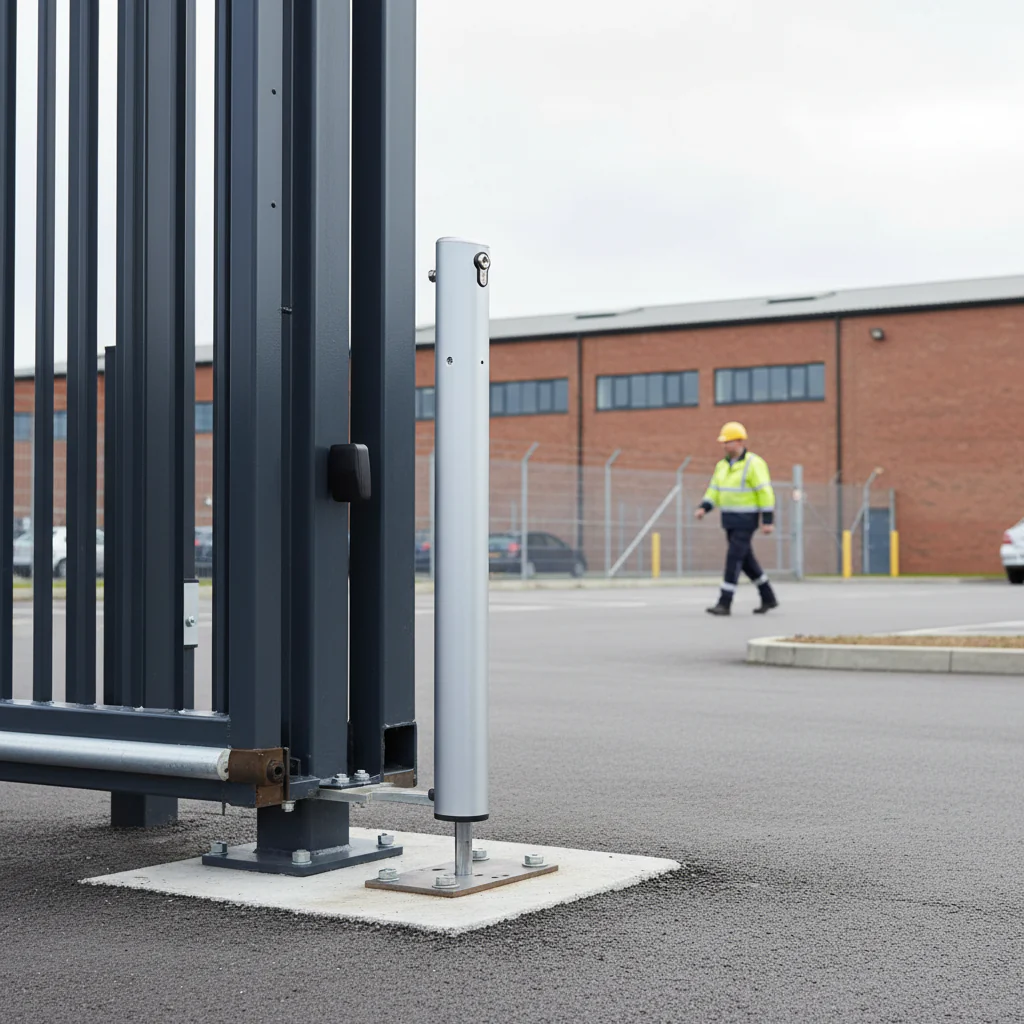

Heavy Duty Motorised Electrical Dropbolt with Vandal-Proof Housing and Automatic Obstacle Detection
Product Overview
This Heavy Duty Motorised Electrical Dropbolt is designed for enhanced security and functionality in automated gate systems. Constructed with a vandal-proof, powder-coated aluminum housing, this dropbolt ensures durability and resilience against tampering or damage.
Key Features
- Vandal-proof, powder-coated aluminum housing for superior durability.
- Connects to warning lights on automated gates, providing a minimum 3-second pre-warning signal.
- Automatic detection and memorization of continuous or pulse signal for reliable operation.
- Mechanical release option by key in case of emergency for added safety.
- Fitted with a relay for drop bolt detection to enhance security.
- Obstacle detection feature automatically stops the drop bolt if pressure exceeds 18 kg, preventing injury or damage.
- Throw length: 115 mm for effective locking.
- Drop bolt diameter: 20 mm for compatibility with various gate profiles.
- Designed for gate profiles of 40 mm or more, ensuring a secure fit.
- Vertical mounting for versatile installation options.
- Power consumption: 25 W; standby consumption: 0.2 W for energy efficiency.
- Includes a 5 m cable for easy connection.
- Included: 3012-37-STD cylinder for secure locking.
- Compatible with specific power supply requirements for optimal performance.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Throw | 115 mm |
| Drop Bolt Diameter | 20 mm |
| Power Consumption | 25 W |
| Standby Consumption | 0.2 W |
| Cable Length | 5 m |
| Weight | 4.21 kg |
| Length | 585.0mm |
| Width | 65.0mm |
| Depth | 20.0mm |
Technical Specifications
- Compatible with gate profiles of 40 mm or more.
- Vertical mounting for optimal installation.
- Mechanical release feature for emergency situations.
- Obstacle detection to prevent injury or equipment damage.
- Relay for drop bolt detection enhances security measures.
FAQs
- Can the dropbolt be used on any gate? It is designed for gate profiles of 40 mm or more.
- What happens if there is an obstacle when the bolt is dropping? The dropbolt will automatically stop if pressure exceeds 18 kg.
- Is there a manual release option? Yes, there is a mechanical release option available by key in case of emergencies.
