Product Overview

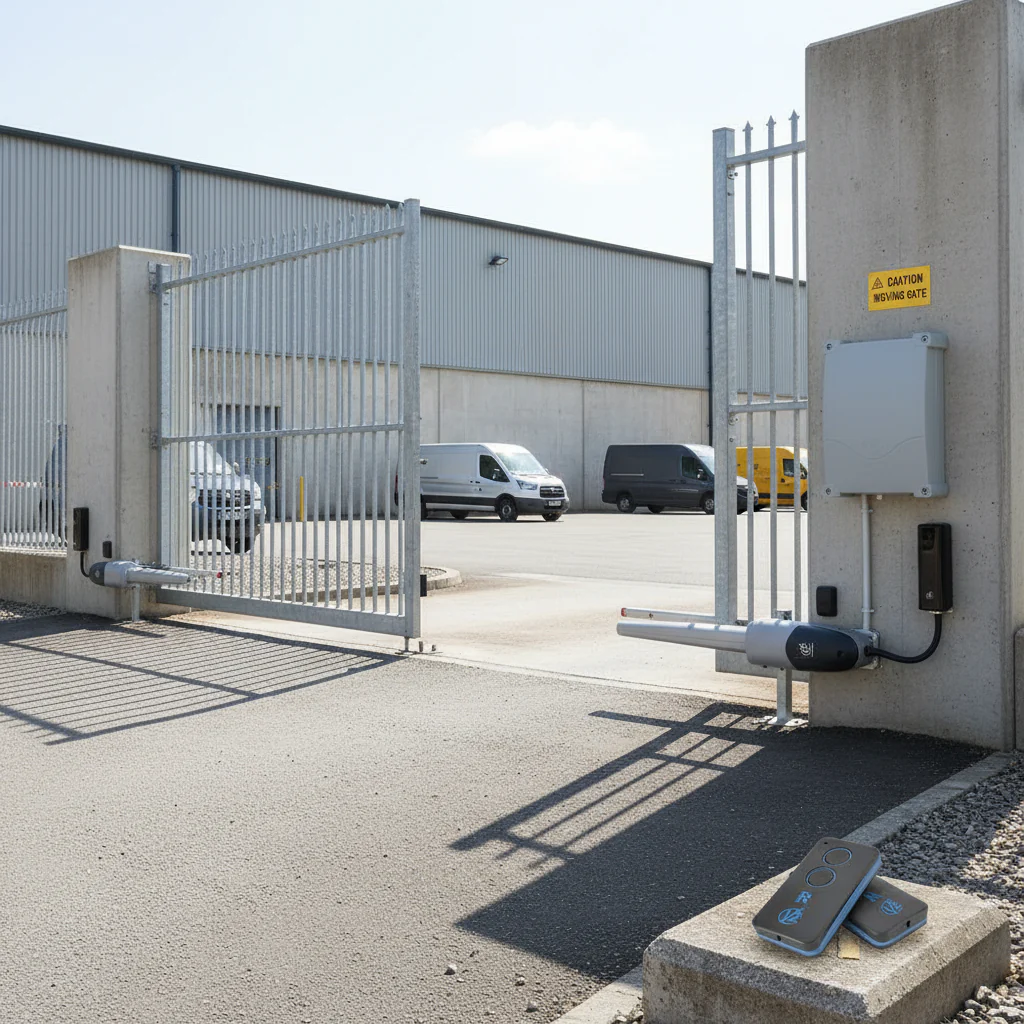

This Premium 24V Electromechanical Ram Kit is designed for gates with a maximum leaf length of 6 meters and a weight capacity of up to 750kg. The kit includes everything required for a comprehensive installation, ensuring reliability and safety for your gate automation needs.

Kit Includes

• 2 Mechanical Arms
• 1 Manual Release Key
• 1 Control Unit
• 1 Pair of Photocells
• 2 Remote Controls
• 1 Receiver Card

Key Features

This kit boasts several advanced features for enhanced performance:

• Open and closing mechanical limits available, reducing the need for ground stops.
• Encoders built on motors, ensuring safe and accurate operation at all times.
• 230V and 24V options available, with low energy consumption, solar, and battery backup options.
• Gate opening angle of up to 110 degrees per leaf (90-degree geometry shown).
• Intuitive digital controller for flexible programming options.

Technical Specifications

Specification	Measurement
Max Gate Leaf Length	6m
Max Weight Capacity	750kg
Weight	31.0 kg
Gate type	Swing
Max gate weight	750.0kg
Max gate width	6.0m

FAQ

• What is the maximum gate weight this kit can handle?
  This kit can support gates with a maximum weight of 750kg.
• Can this kit be used for both single and double gates?

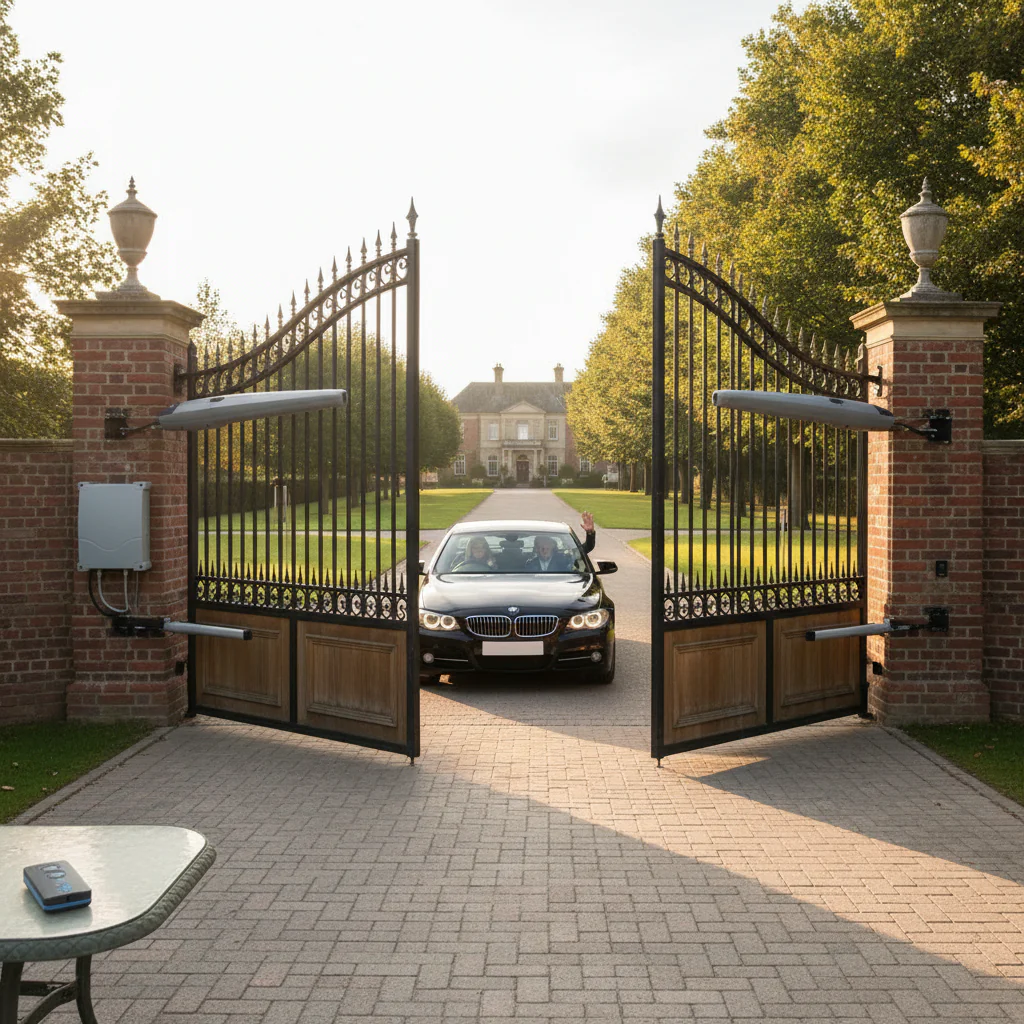

  Yes, it is suitable for both single and twin gate installations.
• Is there support available for installation?
  Yes, free telephone and onsite support are available for professional installers.
