Product Overview

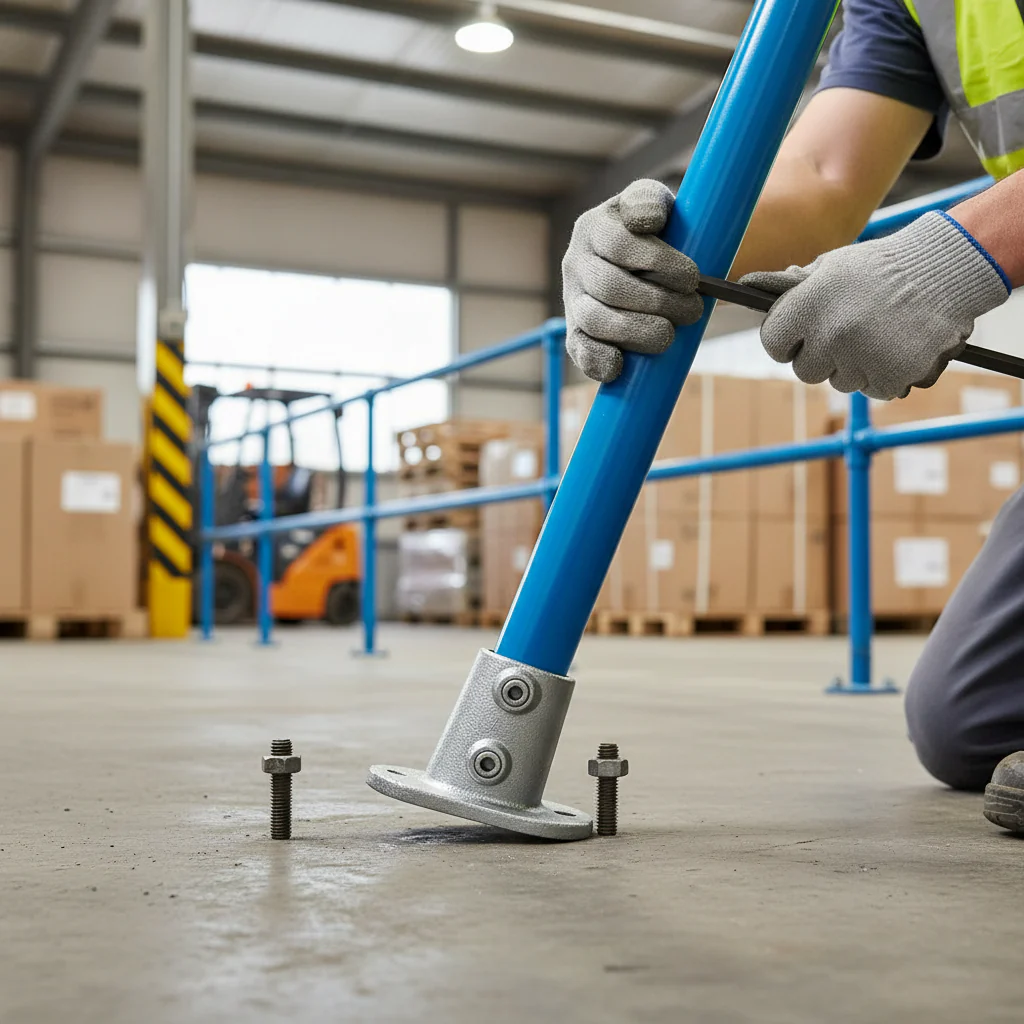

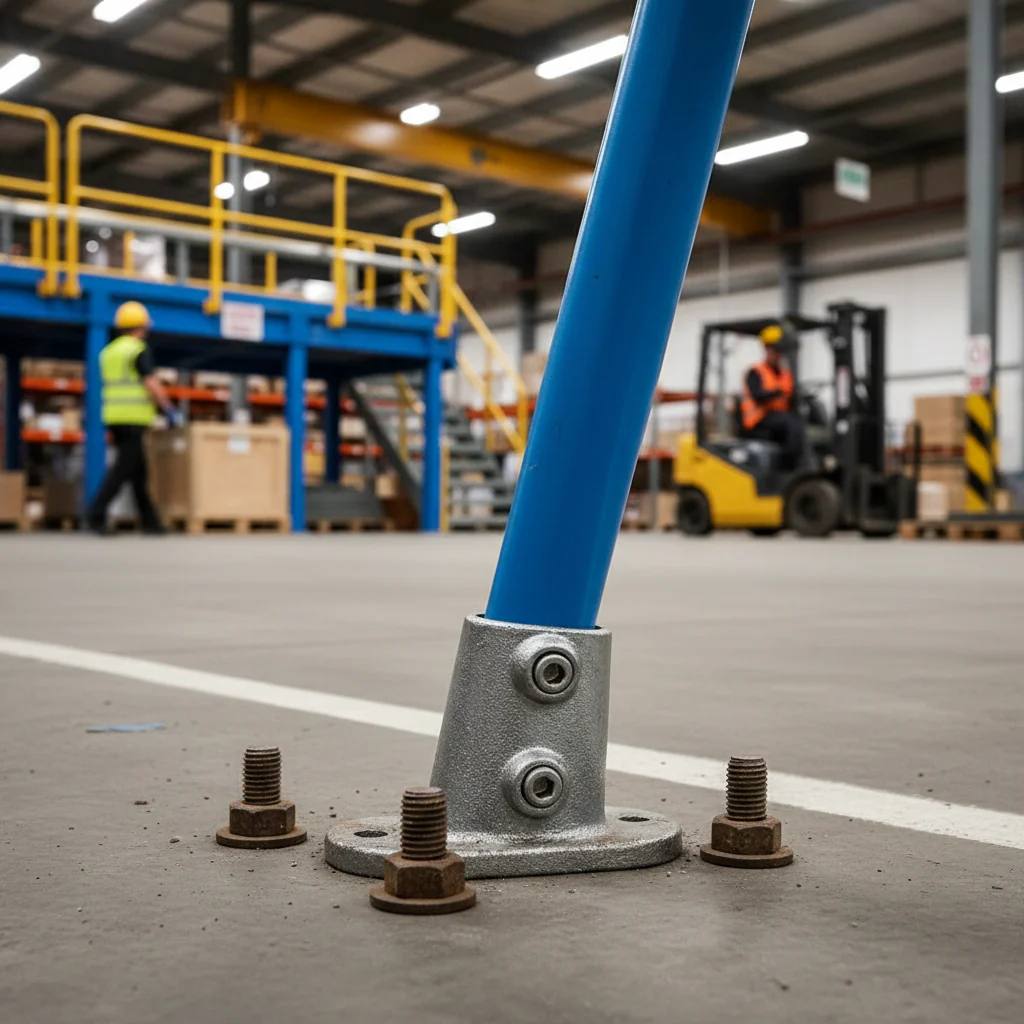

The Premium Adjustable Slope Oval Base Flange is specifically designed for use with 42.4mm tubes, providing a reliable solution for installations requiring support on slopes ranging from 0 to 11 degrees. This flange is ideal for ramp uprights, ensuring stability and safety in various applications.

Features

• Adjustable design to accommodate slopes between 0 and 11 degrees.
• Constructed for compatibility with 42.4mm diameter tubing.
• Durable material ensuring long-lasting performance.
• Simple installation process for quick setup.

Technical Specifications

• Type: Adjustable Base Flange
• Compatible Tube Diameter: 42.4mm
• Slope Adjustment Range: 0-11°
• Weight: 1.0 kg
• Length: 150.0mm
• Width: 85.0mm
• Depth: 75.0mm
• Material: Malleable Iron
• Material finish: Galvanised

Usage Applications

This adjustable base flange is commonly used in various settings where pipe supports are necessary, particularly in:

• Ramps for accessibility compliance.
• Railings and guardrails in commercial buildings.
• Industrial settings requiring robust support structures.

Frequently Asked Questions (FAQ)

Q: What is the maximum slope this flange can accommodate?

A: The flange is designed to adjust for slopes up to 11 degrees.

Q: What tube diameter does this flange fit?

A: It is compatible with 42.4mm diameter tubes.

Q: Is the installation process easy?

A: Yes, the flange is designed for simple installation, making it user-friendly.
