Product Overview

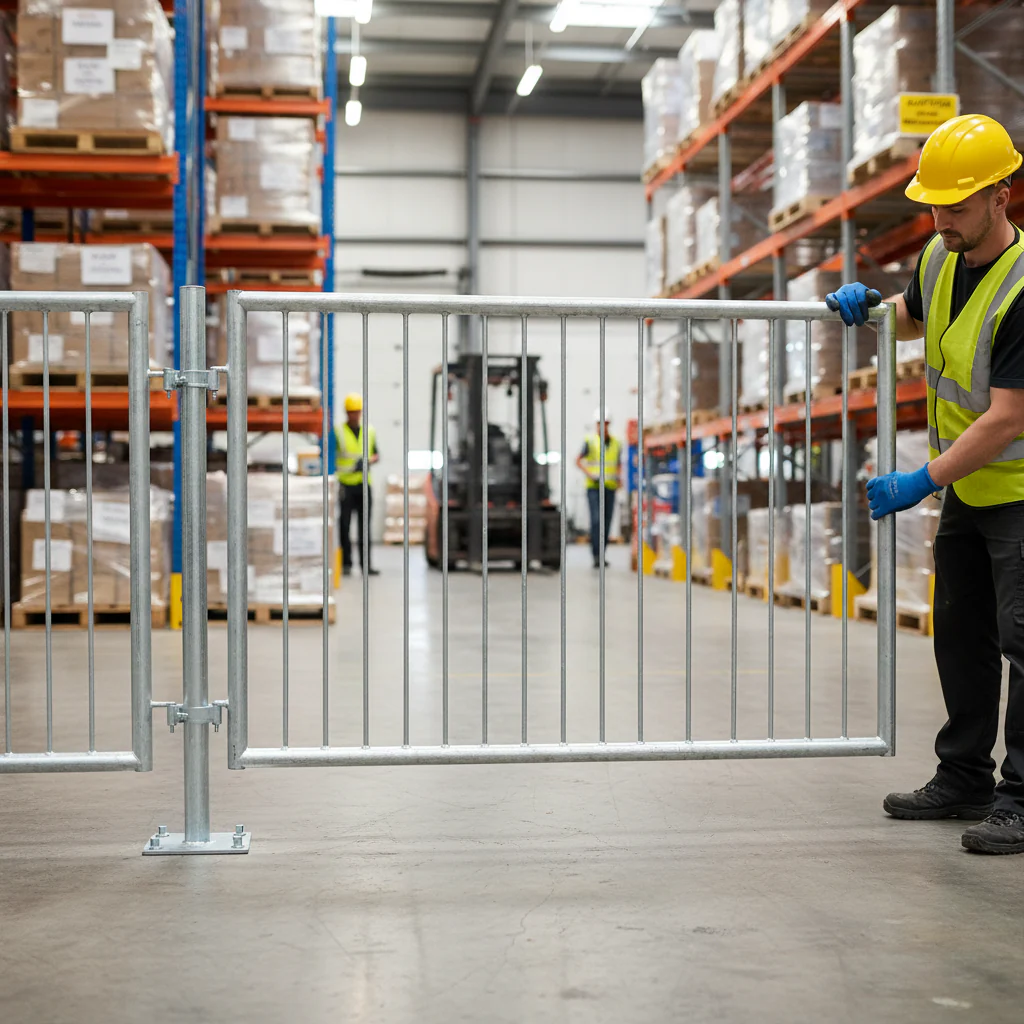

This Premium Infill Key Clamp Fence Panel is designed to suit a 48.3mm diameter tube, providing a robust solution for pedestrian barriers. These pre-made panels are engineered for easy assembly with compatible corner, mid, and end posts, making them ideal for various applications.

Features

• 48.3mm diameter tube for top and bottom robust construction.
• Height of 1100mm when fully assembled with compatible posts.
• 12mm diameter solid bar uprights spaced at 100mm centres for enhanced stability.
• Fully galvanised finish for superior corrosion resistance and durability.

Dimensions & Specifications

Specification	Measurement
Diameter	48.3mm
Height (assembled)	1100mm
Upright Diameter	12mm
Spacing of Uprights	100mm centres
Weight	16.0 kg
Length	1200.0mm
Width	1000.0mm
Depth	48.3mm
Suit tube	48.3mm

Applications

This fence panel is ideal for use in various settings including:

• Pedestrian barriers in construction sites.
• Temporary fencing solutions.
• Event management for crowd control.

FAQs

Q: What is the height of the panel when assembled?
A: The panel stands at a height of 1100mm when assembled with compatible posts.
Q: What is the spacing of the uprights?
A: The uprights are spaced at 100mm centres, providing enhanced stability.
Q: Is the panel suitable for outdoor use?
A: Yes, the fully galvanised finish ensures excellent corrosion resistance, making it suitable for outdoor applications.
