Product Overview

The Premium Single Screw Splice Lock is designed to suit 42.4mm tubes with a wall thickness of 2.6 - 4.0mm. This splice lock is made from the highest quality pressed steel and features a zinc plated finish to prevent corrosion, ensuring durability and longevity in various applications.

Applications

This splice lock is ideal for:

• Handrails
• Guardrails
• Street furniture

Design Features

The splice locks provide the most effective and convenient method of butt joining tubular railings of the same diameter. These internal expansion connectors have been engineered to create a perfect non-slip joint that is completely flush and virtually unnoticeable. Key features include:

• Unique design allows insertion into the tube without separating the two halves.

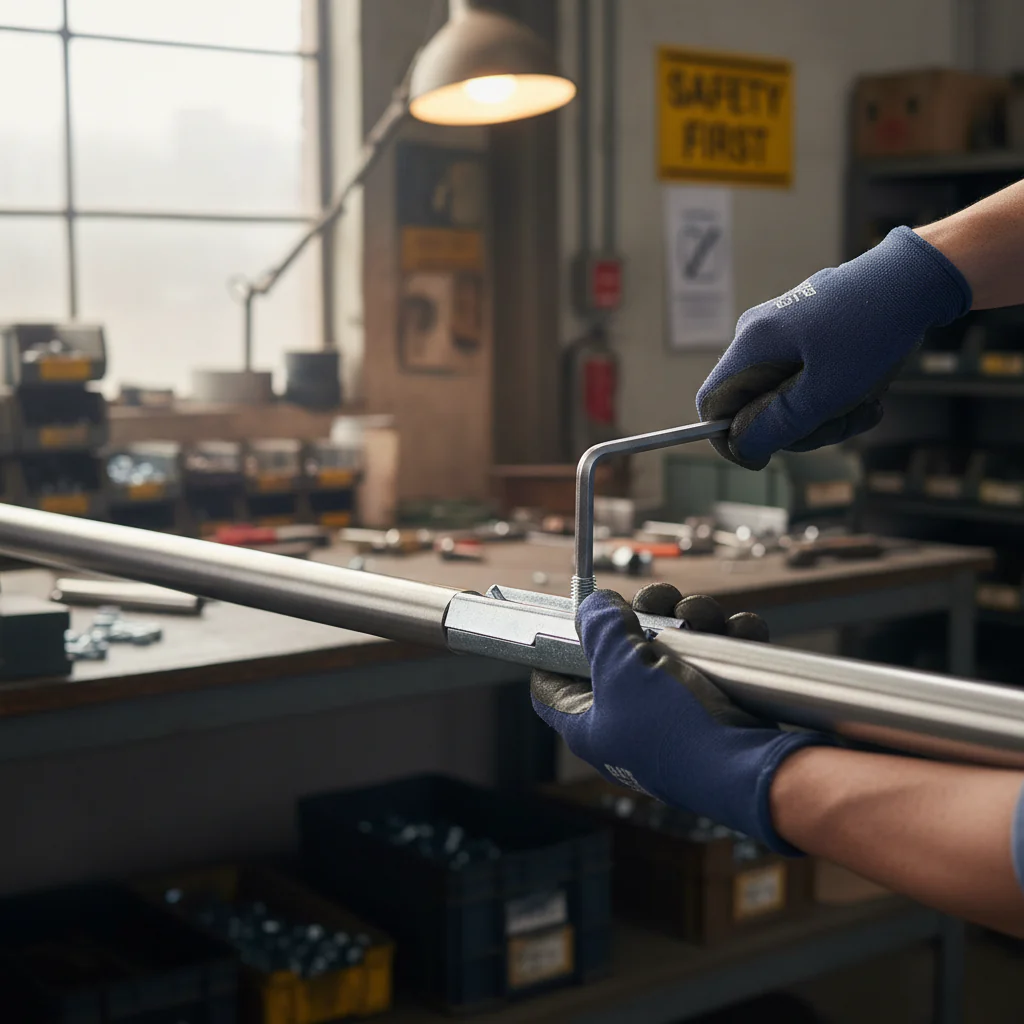

• Once the allen screw is tightened, the splice lock contacts the tube internally in four areas along its full length, ensuring alignment and maximum strength.
• Only suitable for joining the same size diameter tubing.
• Facilitates easy on-site joints, making it perfect for situations where aesthetics and durability are of prime importance.

Technical Specifications

Specification	Measurement
Tube Diameter	42.4mm
Wall Thickness	2.6 - 4.0mm
weight	0.18 kg
length	96.0mm
width	35.0mm
depth	22.0mm
material	Mild Steel
material finish	Zinc Plated

FAQ

• Q: Can this splice lock be used for different diameter tubes?
  A: No, it is specifically designed to join the same diameter tubing only.
• Q: What materials is the splice lock made from?
  A: It is made from high-quality pressed steel with a zinc plated finish.
• Q: Is this suitable for outdoor use?
  A: Yes, the zinc plated finish provides corrosion resistance, making it suitable for outdoor applications.
