Product Overview

This premium straight handrail support plate is designed specifically to suit 48.3mm tubes. Constructed from high-quality 316 stainless steel, it offers excellent corrosion resistance and durability, making it suitable for various applications.

Dimensions & Specifications

Specification	Measurement
Length	63mm
Width	25mm
Thickness	4mm
Hole Diameter	6mm
Weight	0.04 kg
Material	316 Stainless Steel
Material finish	Satin
Suit tube	48.3mm

Features

• Constructed from 316 stainless steel for superior corrosion resistance
• Satin finish for a sleek appearance
• 6mm countersunk hole for secure connection to handrail support pins or brackets
• Designed to fit standard 48.3mm tubes

Applications

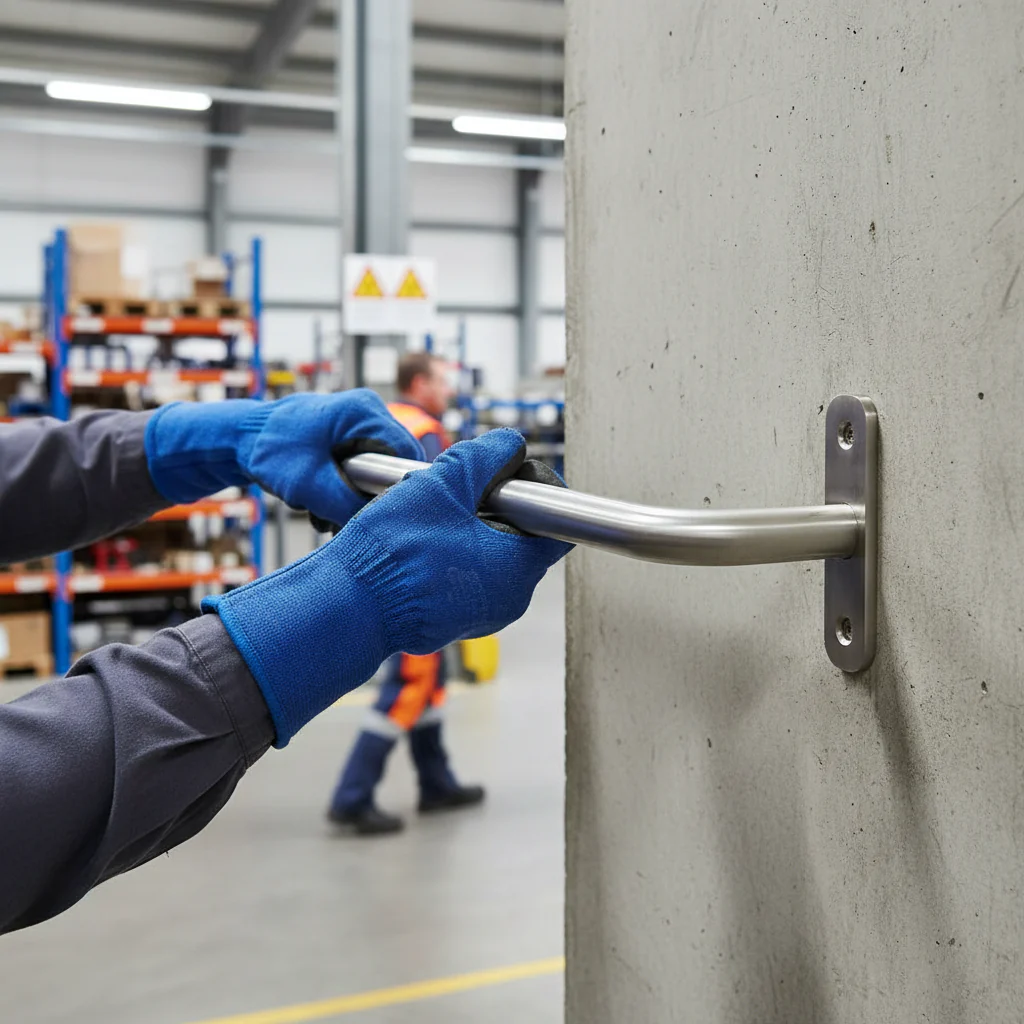

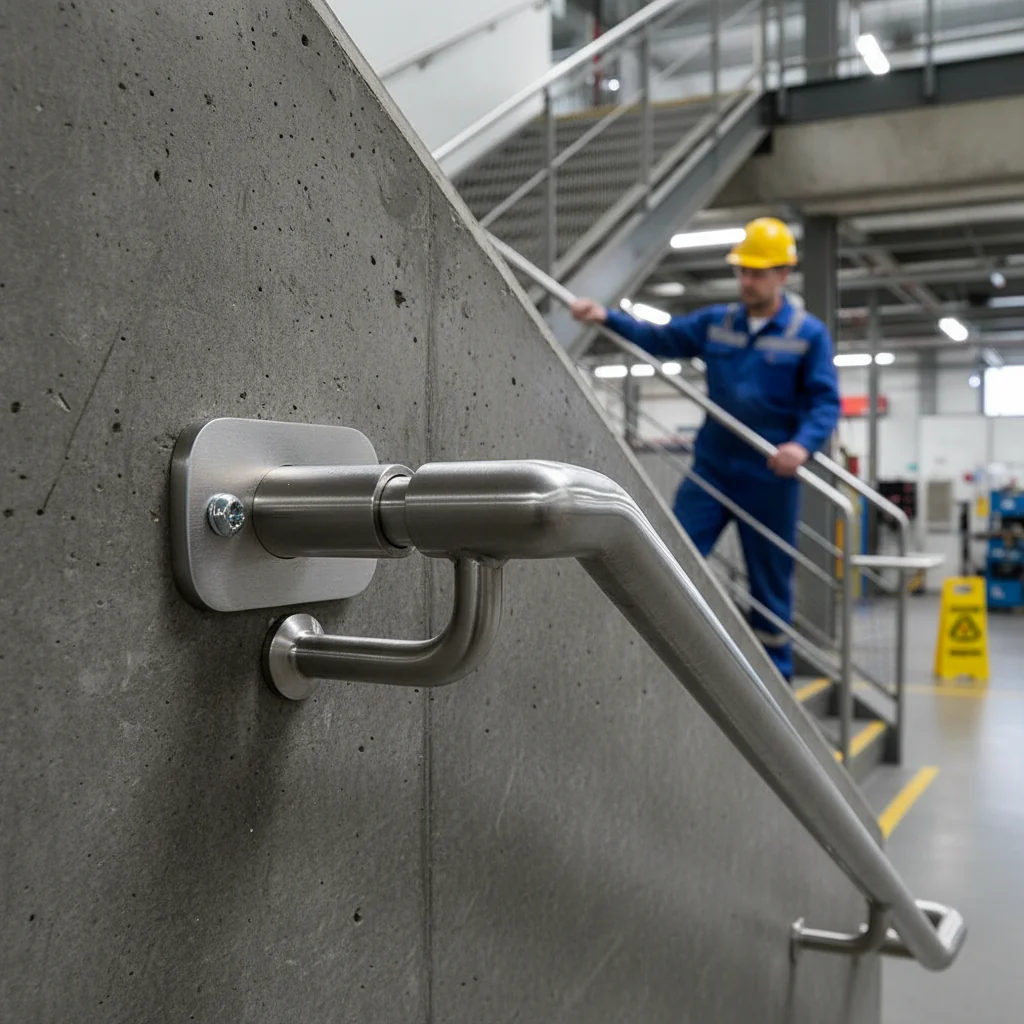

This handrail support plate is ideal for various handrail installations, providing a strong and reliable support structure. Its robust design ensures safety and stability in any environment.

FAQs

Q: What material is the handrail support plate made from?

A: The handrail support plate is made from 316 stainless steel.

Q: What is the hole diameter for installation?

A: The support plate features a 6mm countersunk hole for installation.

Q: Can this support plate be used outdoors?

A: Yes, the stainless steel construction makes it suitable for outdoor use due to its corrosion resistance.
