Description

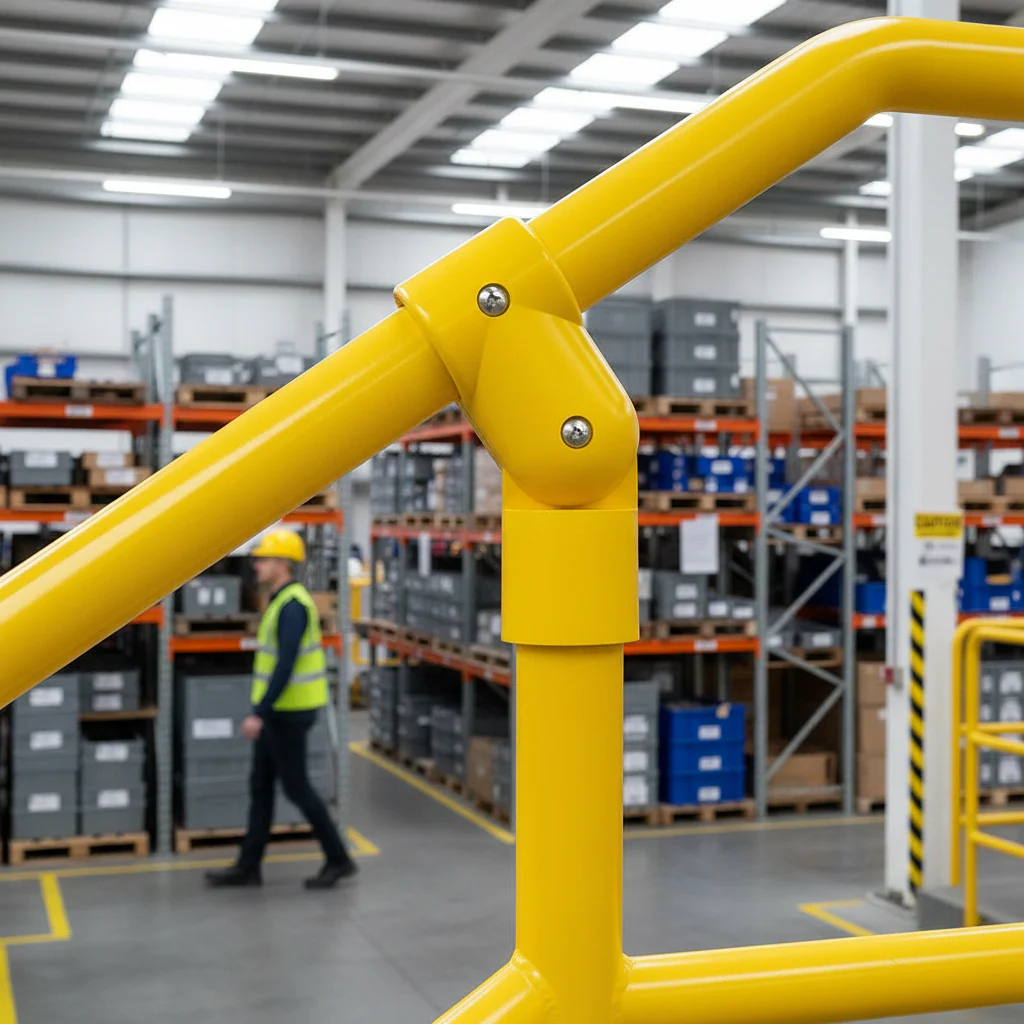

This professional universal 3 way handrail fitting is designed for versatility and functionality. It serves as a variable angle connection between handrail and stanchion post, making it ideal for use on ramps and stairs across a full range of slopes.

Unlike traditional 3 way tees, this fitting allows for angles other than 90 degrees, offering enhanced flexibility for your handrail installations. It can also provide a variable angle for the handrail and knee rail to terminate at a post, facilitating seamless runs of handrail.

The fitting consists of three parts: a universal sleeve connector, a matching universal connector, and a connector that fits over the tube, effectively making it half of a universal joint. This design ensures a robust and reliable connection.

Features:

• Variable angle connection for handrail and stanchion posts
• Alternative to traditional 3 way tees
• Includes pre-drilled holes for easy installation
• Comes complete with M6 bolts and necessary nuts

Technical Specifications

• Material: Premium quality durable components
• Type: Universal 3 way fitting
• Application: Suitable for ramps and stairs

Dimensions & Specifications

Specification	Measurement
Fitting Type	Universal 3 Way
Weight	0.58 kg
Length	180.0mm
Width	66.0mm
Depth	66.0mm
Material	GRP
Suit tube	50mm

FAQs

• Can this fitting be used for any angle?
  Yes, it allows for variable angles, unlike a standard 3 way tee.
• What materials is the fitting made from?
  It is made from high-quality materials designed for durability.
• Does it come with installation hardware?
  Yes, it includes pre-drilled holes and M6 bolts for easy installation.
